Suitable for horses that:
-
Have a large tongue and also need lateral guidance
-
Do not respond to the outside rein
-
Fall in on a circle or drift on a straight line
-
Are green and have not settled in a jointed bit
How it works

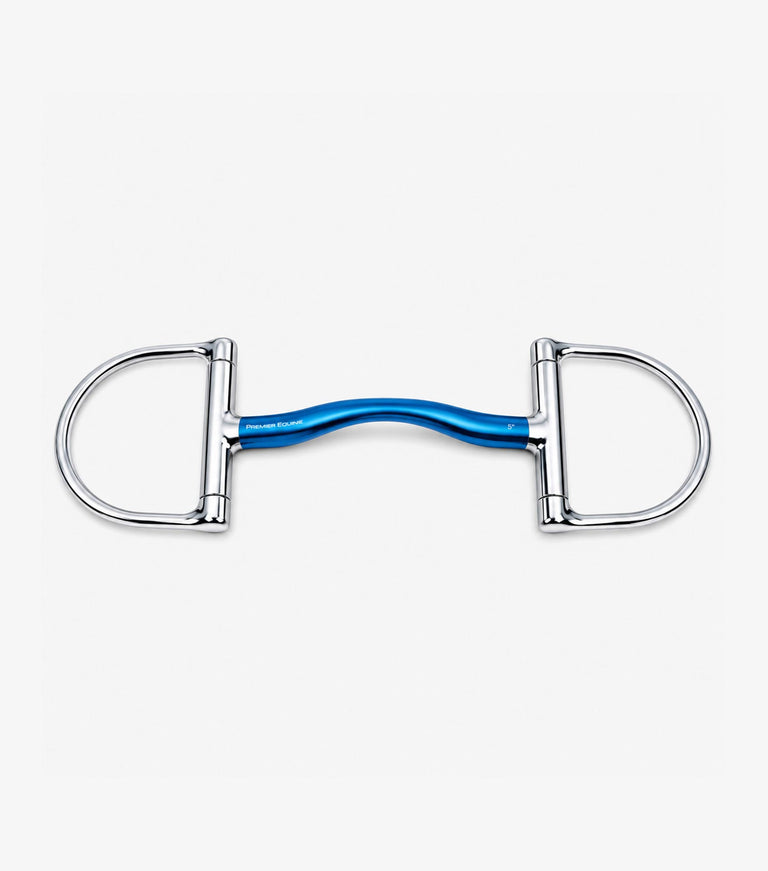

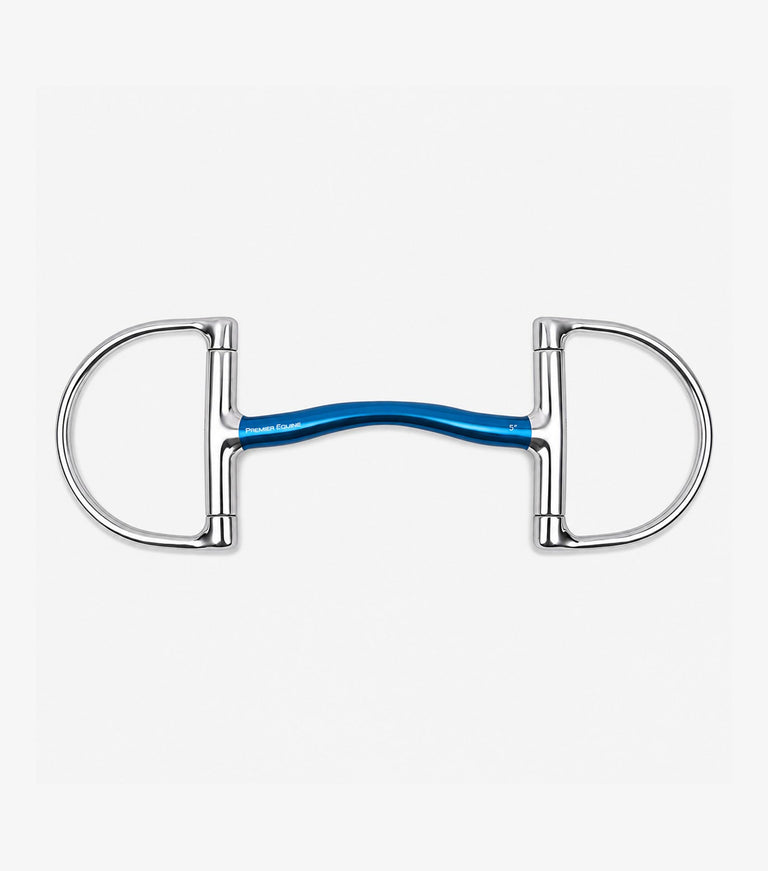

Mouthpiece. An unjointed mullen bar formed from a single piece of sweet iron, tapering from 14mm at the cheek to 10mm through the centre. The port measures 80mm wide by 10mm high, low and broad rather than tall and narrow, so the tongue is given room across a wide span while the bar stays well clear of the palate. The mouthpiece is swept forward to follow the arch of the tongue. With no joint there is nothing to close on the bars and no nutcracker action, and port relief moves the load off the centre of the tongue and out onto the bars.

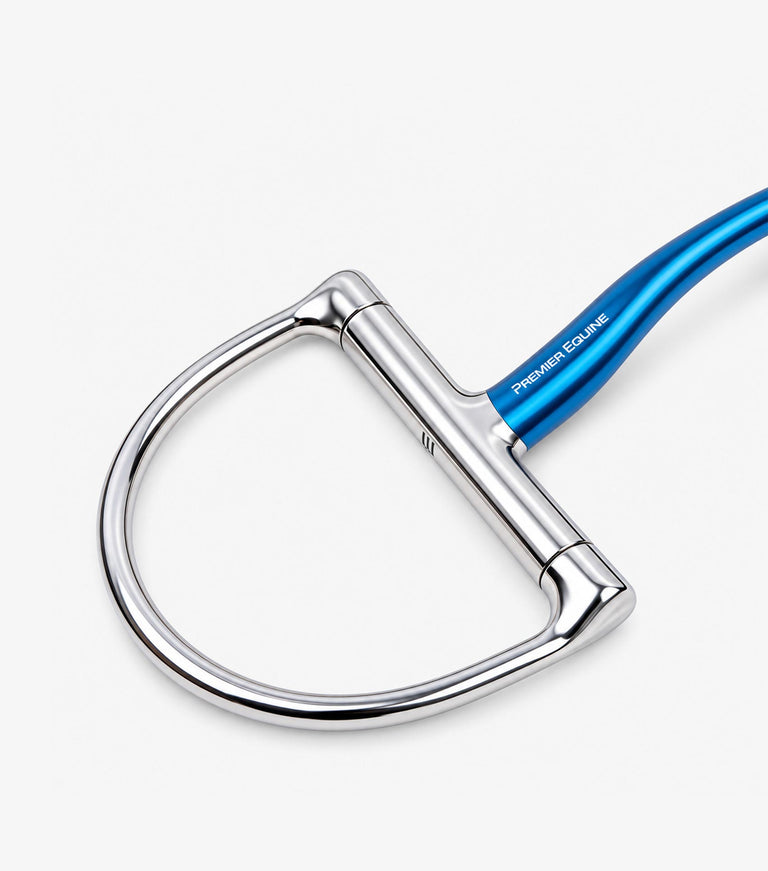

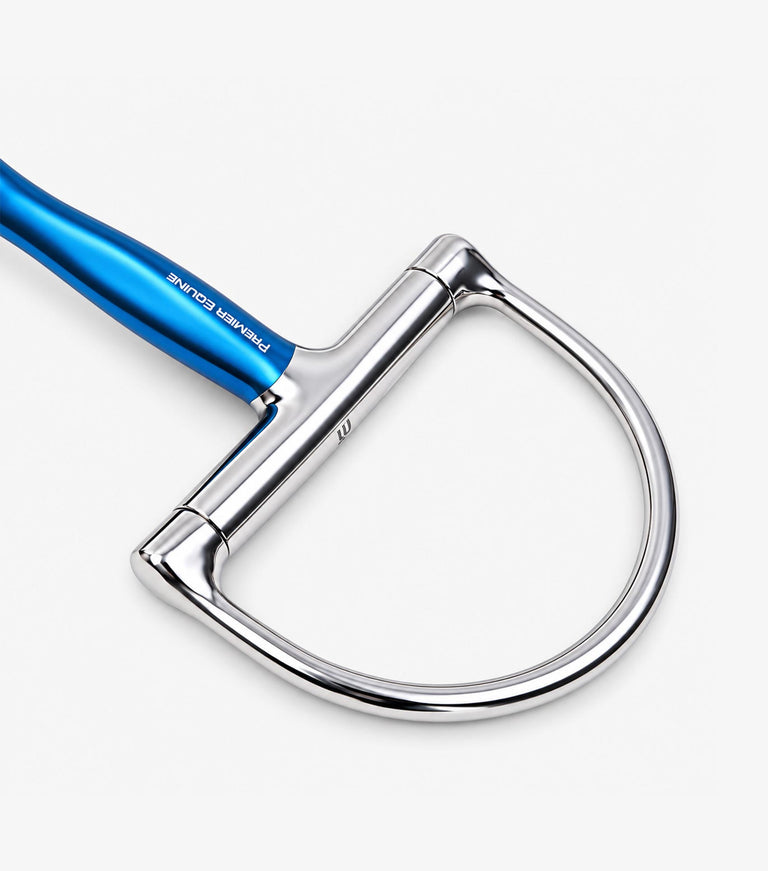

Cheek piece. The Dee ring is similar in action to an eggbutt but presents a longer straight edge against the face. It prevents pinching, gives a more solid feel against the cheek and prevents the bit being pulled through the mouth. The straight side runs 86mm down the face, so when the inside rein is used the opposite side presses against the cheek and assists in bringing the shoulder round. With an unjointed mouthpiece the steering comes entirely from the cheek, which is why the Dee is a sound pairing here.
